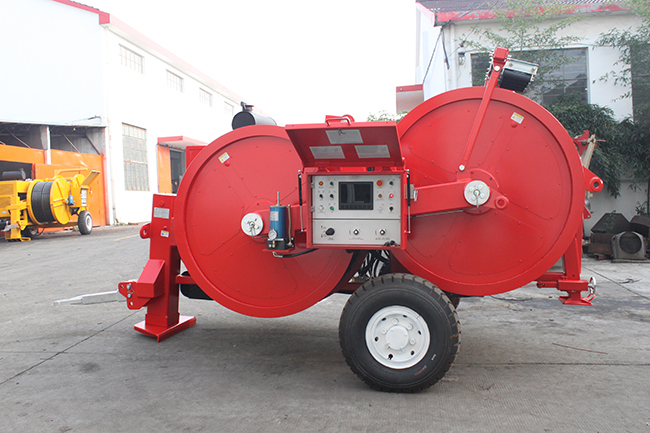

| TY90TP Hydraulic Puller-Tensioner | The machine is suitable to string one or two ropes or bundled conductors. |
| The bull-wheel grooves are made of high resistance interchangeable nylon sectors. |
| The machine is completely electronically controlled. |
| |
| Characteristics | Bull-wheel diameter: 1500mm |
| Max rope diameter : 18mm |
| Max conductor diameter: 40mm |
| Groove number: 10 |
| Overall dimension (length*width*height): 4700×2300×2700mm |
| Total weight: 6800kg |
| |
| Performance | Puller |
| Max pull: 90kN |
| Speed at max pull: 2.4km/h |
| Pull at max speed: 44kN |
| Max speed: 5km/h |
| Tensioner |
| Max tension: 90kN |
| Max speed: 5km/h |
| |
| Engine | Diesel 118kw(158hp) |
| Cooling system water |
| Electrical system 24V |
| |
| Main configuration | Engine: Cummins |
| Operating handle: German Rexroth |
| Hydraulic meter: German WIKA |
| Main motor: German Rexroth |
| Hydraulic pump: German Rexroth |
| Speed reducer: German Rexroth / Italy Bonfiglioli |
| |
| Configuration | Negative self-acting hydraulic brakes |
| Control instruments for hydraulic system and diesel engine |
| Hydraulic oil cooling system |
| Digital meter counters |
| Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders |
| Rigid axles for towing at max speed of 15km/h with mechanical parking brake |
| Grounding connection point |
| Hydraulic front stabilizer |
| Hydraulic dynamometers with set-point and automatic control of maximum pull |
| |
| Additional Devices | Lighting system for the trailer |
| Digital speed and meter counter |
| 2 hydraulic rope/conductor clamp(extra charge) |
| Trailer for towing at max speed of 15 km/h |
| Swivel guide rope roller |
| |
| Hydraulic Transmission | Closed hydraulic circuit for step less speed variation in both rotating directions. |
| This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. |
