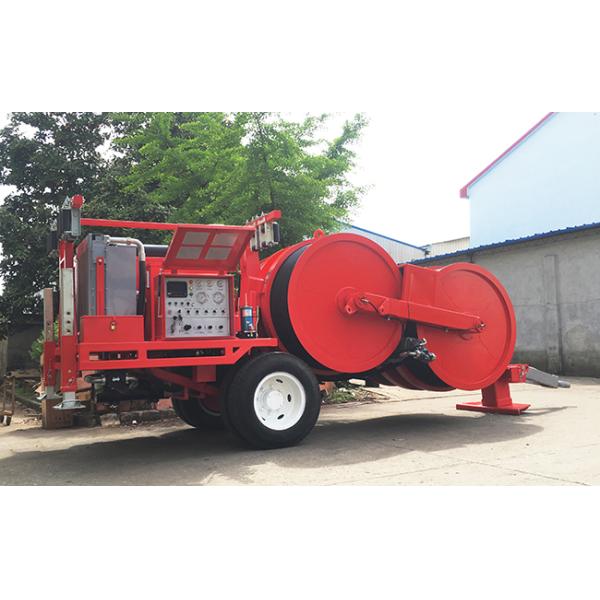

2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line

Name: 2x701x140kN Stringing Equipment Tension Machine For Overhead Line
Brand: HANYU
Price: 94 USD

Quality 2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line for sale

Brand Name : HANYU

Model Number : TY2x70IV

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD94,000-97,000/set

Payment Terms : L/C, T/T

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Type : Stringing Equipment Tension Machine

Pull at max speed : 2x25/1x50kN

Groove number : 2x8

Bull-wheel diameter : 1500mm

Max conductor diameter : 40mm

Max intermittent tension : 2x70/1x140kN

Contact Now

2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line

Performance

Max intermittent tension: 2x70/1x140kN
Max continuous tension: 2x65/1x130kN
Pull at max speed: 2x25/1x50kN
Max speed: 5km/h
Max reverse pulling force: 2*60kN/1*120kN
Max reverse pulling speed: 5km/h
Speed at max tension: 2.5km/h

Characteristics

Max conductor diameter: 40mm
Groove number: 2x8
Bull-wheel diameter: 1500mm
Overall dimension (length*width*height):5500*2280*2700mm
Total weight: 12000kg

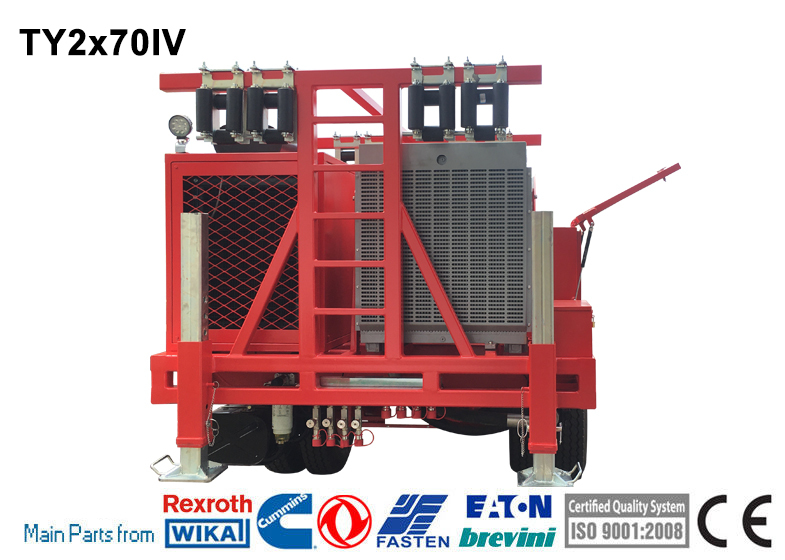

TY2x70IV Hydraulic Tensioner

The machine allows for the tension stringing of four-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Engine

Diesel: 77kw(103hp)
Electrical system: 24V
Cooling system: water

Main configuration

Speed reducer: German Rexroth / Italy Bonfiglioli
Main motor:German Rexroth/French Leduc
Main hydraulic valves: USA Sun / Italy ATOS
Hydraulic pump: German Rexroth/Dnish Danfoss
Engine: Cummins

Configuration

Hydraulic oil cooling system
2 negative self-acting hydraulic brakes
Grounding connection point
2 digital meter and speed counters
Hydraulic front stabilizer
2 hydraulic dynamometers
Control instruments for hydraulic system and diesel engine
Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Additional Devices

Air brake system for the trailer (extra charge)
Lighting system for the trailer
Digital Speed and meter counter
Swivel guide rope roller
4 hydraulic rope/conductor clamp (extra charge)

2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line

Product Tags:

overhead line tension machine

stringing equipment for transmission lines

70kN 140kN stringing machine

2x70/1x140kN Stringing Equipment Tension Machine For Overhead Line Images
